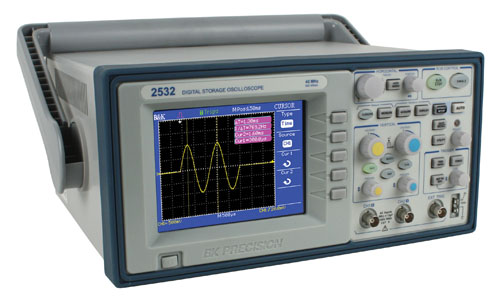

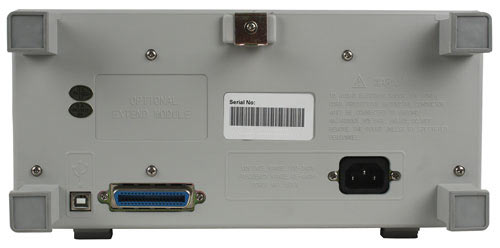

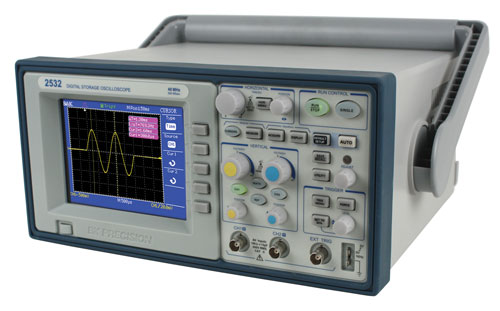

40 MHz, 500 MSa/s Digital Storage Oscilloscope

Discontinued Model 2532

Discontinued: February 1, 2011 MSRP $699 / 1 Yr Warranty
    • 40 MHz, 500 MSa/s Digital Storage Oscilloscope
    • Model 2532B
    • 40 MHz, 500MSa/s, 2 Ch, 5.7 inch Color LCD, entry level DSO. Analog style knobs and one touch automatic setup. Supports cursors with readouts, 32 automatic measurements, and extensive trigger capabili

The 2532 Digital Storage Oscilloscope delivers essential features and reliable performance at a price you can afford. Analog style knobs and controls combined with a smart Auto function make this oscilloscope easy to use. Advanced triggering, automatic measurements and FFT functions provide you with many options to debug your circuits. Additionally, the instrument comes with PC Software that lets you easily capture, analyze and document waveforms and measurement results. The 2532 is an ideal education and training tool and also well suited for applications in service and repair.

  • 40 MHz bandwidth, 500 MSa/s sample rate
  • Color display
  • One touch automatic setup for ease of use (Auto)
  • 4000 point record length for each channel
  • FFT standard plus 4 additional math functions
  • Cursors with readouts
  • Eleven automatic measurements
  • Extensive Trigger capabilities including Pulse Width and line-selectable Video trigger
  • Save/Recall setup and waveform data
  • Transfer waveform data, screen shots and measurement results to a Windows PC via USB port. Analyze measurement results "off-line" or in real-time



Description Version Download
Operating Software (Supports Windows(R) 2000/XP/Vista; does not support 64-bit systems) V2.01.03.1 EasyScope_2.0.zip
