31.5 MHz Synthesized Arb. Waveform Gen. w/ software

Discontinued Model 4071

Discontinued: March 1, 2009 MSRP $1,725 / 2 Yr Warranty

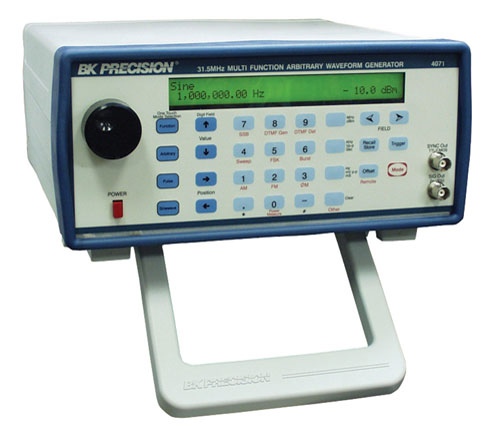

The B&K Model 4071 31.5 MHz Synthesized Arbitrary Waveform Generator represents the finest single source for signal generation to date. Combining the latest DSP and DDS technologies, the 4071 offers a number of operating modes, providing a versatile, cost effective signal source. You will find the 4071 is the best value and most capable instrument for any bench.

Arbitrary Waveform Generator, Sweep Function Generator, Pulse, VCO, AM, FM, Ø Modulation, FSK and Burst Modes are all accessed quickly and easily from the front panel keypad. Being a true 12 bit arbitrary generator, the 4071 is stable, accurate and drift free. Unlike competitive models, the 4071 generates every data point independently of the repetition rate instead of a simple look up table. Custom design waveforms on a PC, or download from a number of sources, spread sheet, oscilloscope or application program the 4071 will perform like no other signal source.

  • Arbitrary Waveform Generation
  • Function Generator
  • Pulse Generator
  • High Stability Time base

Documentation

Software

Description Version Download
Operating Software V1.2 AK4070A.zip
  • BNC Breakout to Alligator Clips

    Model CC-21

    Standard BNC to Alligator clips test leads.

    • 50 ohm impedance
    • RG58C/u cable
    • 500Vrms voltage rating
    • 40" cable length

    MSRP $11.50

  • Function, Pulse, and Arbitrary Waveform Generator Carrying Case

    Model LC 40
    • Made in the U.S.A.
    • Light weight, durable Cordura nylon
    • Protects your instruments from damage
    • Room to hold your test leads
    • Perfect size to accommodate bench a Function Generator, Pulse Generator or Arbitrary Waveform Generator
    • Approximate Internal Dimensions: 11 x 5.5 x 12" (279 x 140 x 305mm)

    MSRP $88.00

  • Function Generator Test Leads Set

    Model TLFG

    General purpose test probe set that includes BNC to BNC cables, BNC adapters and test clips.

    MSRP $82.00
