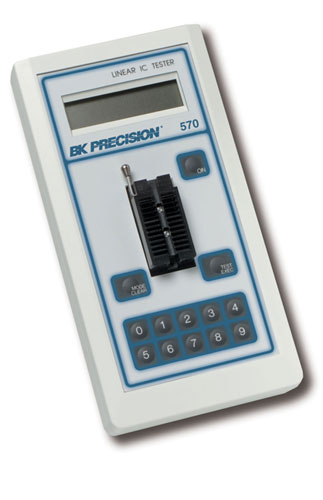

Linear IC Test and Identifier

Discontinued Model 570

Discontinued: December 30, 2006 MSRP $1,030 / 1 Yr Warranty
    • Linear IC Tester
    • Model 570A
    • Identifies and performs functional tests of analog ICs.

Easy to use, no programming or fixturing required. Simply plug in the device, key in the part's number or use Auto Detect and the 570 will do the rest. Proven test software using advanced technology makes this the ideal addition to your toolkit.

  • Tests all common analog IC's
  • Auto identification of unmarked/house coded devices listing possible replacements
  • Conditional/unconditional loop testing mode
  • Functional test emulates passive circuitry to implement a comprehensive test in a variety of configurations
  • Displays diagnostic information down to individual component pins
  • Rugged, hand-held, ergonomically designed case incorporates built in membrane keypad, 2 x 16 dot matrix alpha numeric LCD and high quality 16 pin ZIF socket
  • Auto power off
