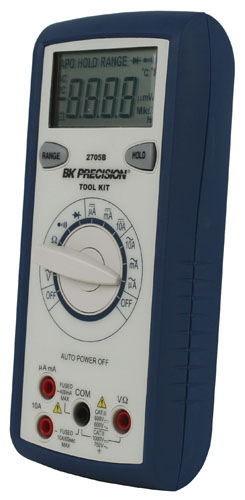

Auto Ranging Tool Kit Digital Multimeter

Model 2705B

The 2705B is a full-featured auto-ranging DMM that combines performance, value and functionality. The 4000 count LCD can display resistance values up to 40 Mohm. With the auto-power-off feature, you won't have to worry about accidental battery consumption. Value-packed features make this meter a must in every "Tool Kit®".

Features

  • Magnetic hanger
  • One-handed operation
  • Auto/manual ranging
  • Auto power off
  • Measures up to 10 A (AC & DC)
  • DC voltage to 1000 V
  • AC voltage to 750 V
  • Resistance to 40 Mohm
  • Continuity test
  • Diode test
    • AC/DC Clamp Accessory for DMMs
    • Model# CP 3

      • Converts any DMM to a current clamp
      • Measures current without disconnecting circuit under test
      • Measures to 400A DC/AC
      • Outputs 1mV per Amp, operates on 2V range of any DMM

    • 40kV High Voltage DMM Probe
    • Model# PR 28A

    • If the voltages you need to measure are above the specifications of the general purpose probe, B+K Precision has higher voltage probes for you.

      • 40,000VDC or 20,000Vac Max input voltage
      • X1000 Attenuation
      • 1000M ohms Input Impedance
      • 60Hz Bandwidth
      • 48" (1.2m) Cable Length

    • Tip Kit Accessories for TL 2A
    • Model# TL 3

    • Threaded accessories to fit

      • TL-2A probes
      • Black and Red pairs (except for alligator clip)
      • Alligator clip, Red only
      • Spring hook clips
      • 4" Sharp extension tips to reach tight test points
      • No. 10 Spade lugs

    • General Purpose DMM Kit
    • Model# TL 130A

    • Red and Black CAT III (IV) 1000V (600V) Test Leads
    • Model# TL37

    • Right angled sheathed banana replacemnet 10A test leads for digital multimeters.With tip cap on, they are rated to CATII 1000V, CAT IV 600VWith tip cap off, they are CAT II 1000V

    • Maxi-Pro DMM Kit
    • Model# TL-50

    •

      • Complete accessory kit for all your testing needs.
      • Includes soft, flexible silicone lead wire easy movement and Tri-Fold Velcro Pouch for convenient storage.
      • All components compliant to IEC61010-2-031
      • Silicone lead wire length 60" (1.5m)
      • Tri-fold Velcro Pouch



    • DMM Carrying Case
    • Model# LC 29B

    • Made in the U.S.A. Light weight, durable Cordura nylon Protects your instruments Room to hold your test leads Approximate Internal Dimensions: 4 x 2.5 x 8" (102 x 64 x 203mm)
