2510 Series

60 MHz and 100 MHz, 1 GSa/s Handheld Digital Storage Oscilloscopes

Model 2516

MSRP $2,395 / 3 Yr Warranty
Where to Buy

The 2510 Series handheld digital storage oscilloscopes provide floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 60 MHz and 100 MHz bandwidth scopes offer 1 GSa/s sample rates, 2 Mpts waveform memory, 32 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. The 2510 Series allows engineers and technicians to make accurate and safe measurements when the signal reference is floating.

  • 60 MHz and 100 MHz bandwidth
  • 1 GSa/s sample rate

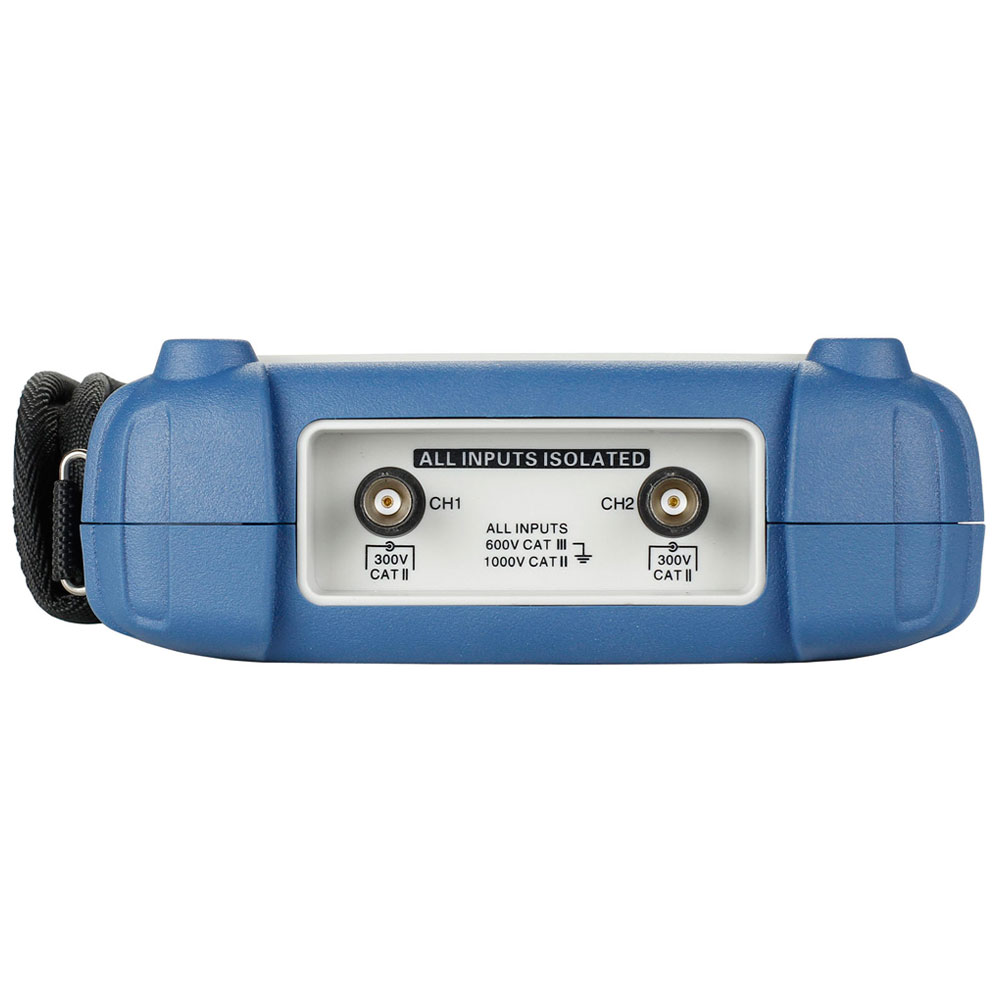

  • Isolated 600 V CAT III input channels (models 2515/2516)
  • 2 Mpts deep memory
  • 32 automatic measurements
  • FFT plus four additional math functions
  • Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
  • Dedicated current measurement terminals
  • Recorder and trend plot functions to log data
  • PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
  • USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
  • Standard mini-USB device port for remote PC control

Model Bandwidth Channels Safety Rating MSRP
2511 60 MHz 2 non-isolated 300 V CAT II $935 Where to Buy
2512 100 MHz 2 non-isolated 300 V CAT II $1,125 Where to Buy
2515 60 MHz 2 isolated 1000 V CAT II, 600 V CATIII $2,165 Where to Buy
2516 100 MHz 2 isolated 1000 V CAT II, 600 V CATIII $2,395 Where to Buy

Documentation

Software

Description Version Download
Operating Software (Supports Windows(R) XP/Vista/7) 3.01.03.01.11 251x_Software.zip
Windows 7 64-bit USB Driver USB Driver 251x_USB_Driver_Win7_64.zip
Windows XP/Vista/7 32-bit USB Driver USB Driver 251x_USB_Driver_XP_Vista_7_32.zip
  • Replacement AC Power Adapter for 2510 Series

    Model BE2510

    Input: 100 - 240 VAC, 50/60 Hz

    Output: 9 VDC, 4A

    MSRP $38.00

  • Replacement Battery 7.4 VDC 5000 mAh for 2510 Series

    Model BP2510

    Replacement battery for 2510 series handheld digital storage oscilloscopes. A fully charged battery has an approximate operation time of 4 hours.

    MSRP $51.00

  • Insulated BNC male to BNC male coaxial cable assembly 1 meter

    Model CC251

    High Quality BNC male to BNC male cable assembly with highly flexible coaxial cable.

    • 1000V CAT II / 600V CAT III IEC Rating
    • 50Ω  Impedance
    • DC to 2GHz Frequency range
    • Flexible PVC jacket material
    • 1 Meter cable length
    • 0 to 50°C Temperature range
    • RoHS (2002/95/EC) Compliant

    MSRP $17.50

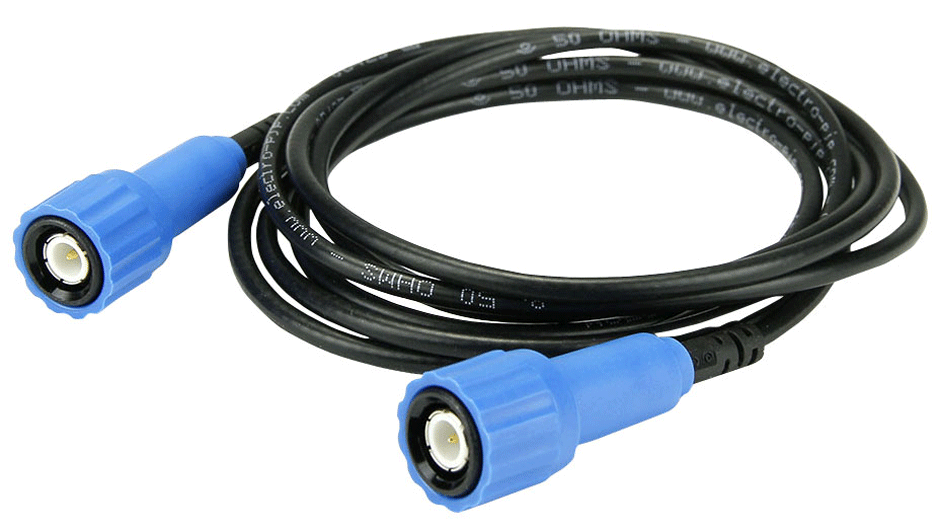

  • Insulated BNC male to BNC male coaxial cable assembly 2 meters

    Model CC252

    High Quality BNC male to BNC male cable assembly with highly flexible coaxial cable.

    • 1000V CAT II / 600V CAT III IEC Rating
    • 50Ω  Impedance
    • DC to 2GHz Frequency range
    • Flexible PVC jacket material
    • 2 Meter cable length
    • 0 to 50°C Temperature range
    • RoHS (2002/95/EC) Compliant

    MSRP $19.50

  • General Purpose BNC and N Adapter Kit

    Model CC500

    General Purpose BNC & N Type Adapter Kit provides a comprehensive range of in-series and between-series BNC and N Type coaxial adapters for basic RF testing and troubleshooting needs. The 12 piece kit, packaged in a convenient foam-lined storage case for easy selection and use, is ideal for all popular instruments. The kit contains the most commonly used BNC and N Type adapters for everyday testing. All components feature 50Ω impedance, gold plated center contacts, and low VSWR to ensure accurate repeatable measurements. Features: BNC & N Type 50Ω Connectors Gold plated center contacts Storage case Applications: Production Testing Stations Service & Repair Facilities Educational Test Benches

    MSRP $125.00

  • General Purpose SIgnal Interconnect Kit

    Model CC510

    Model CC510 General Purpose Function Generator and Oscilloscope Kit provides a range of BNC and N Type coaxial interconnection for basic function / arbitrary waveform generators use. All components feature standard BNC or N Type interfaces with 50 ohm impedance and gold plated center contacts to ensure accurate repeatable measurements. The kit is provided in a convenient foam lined storage case for easy selection and use. Features: BNC & N Type 50 ohm Connectors Gold plated center contacts Storage case Applications: Production Test Stations Service & Repair Facilities Educational Test Benches

    MSRP $179.00

  • 300 kHz AC/DC Oscilloscope Current Clamp Probe

    Model CP62

    The CP62 current probe allows a general purpose oscilloscope to display AC and DC current signals up to 100 A Peak (70 A RMS). The CP62 current probe can also make AC and DC measurements with a multimeter by using the recommended accessory TL62 (BNC-to-banana) plug adapter.

    • 50 mA to 100 A peak
    • DC to 300 kHz
    CP62 Manual

    MSRP $495.00

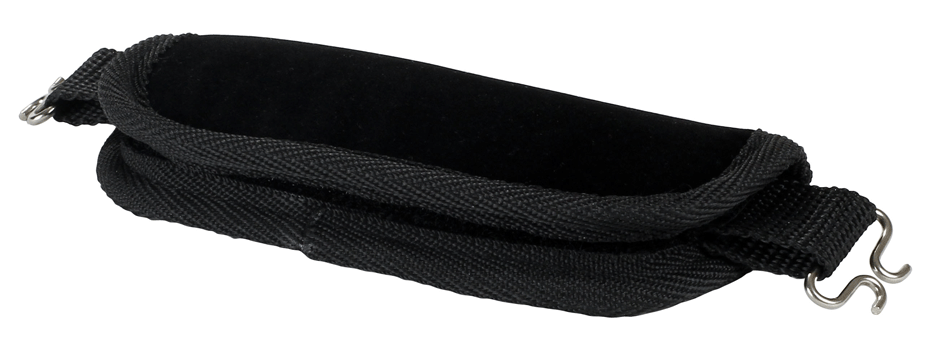

  • Replacement Hand Strap with Connecting Hooks for 2510 Series

    Model FHS2510

    MSRP $10.00

  • 2510 Series Soft Carrying Case

    Model LC2510B

    Included with models 2511, 2512, 2515, and 2616

    MSRP $46.00

  • High-Voltage Oscilloscope Probe, 10 kV, 40 MHz

    Model PR-55

    If the voltages you need to measure on your oscilloscope are above the specifications of the general purpose probe, B+K Precision has higher voltage probes for you. X1000 Attenuation 100 Mohms / 1 pF Input Impedance 40 MHz Bandwidth 80" (2.0m) Cable Length

    MSRP $319.00

  • 150 MHz 1x/10x Oscilloscope Probe

    Model PR150SA
    • 17/150 MHz Bandwidth
    • X1/X10 Attenuation
    • Insulated BNC connector
    • 47" (1.2m) Cable length
    • 300 V CAT II
    • Includes a full accessory kit with a Sprung Hook, Replacement Tip and BNC Adapter
    • Meets IEC61010-031 CATII

    MSRP $59.00

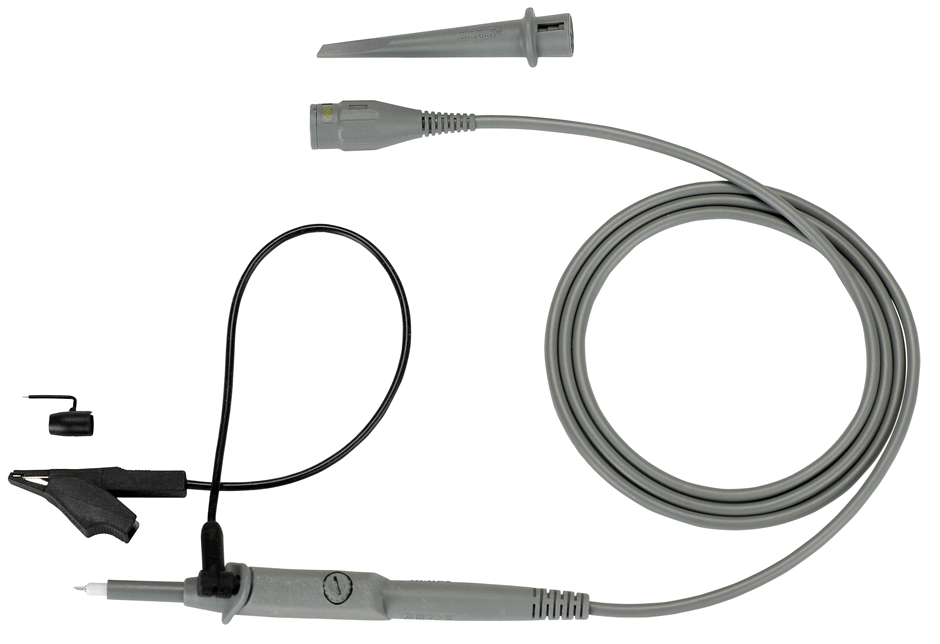

  • 250 MHz 10x Oscilloscope Probe

    Model PR250SA
    • 250 MHz Bandwidth
    • X10 Attenuation
    • Touch-protected probe
    • 47" (1.2m) Cable length
    • 1000 V CAT II, 600 V CAT III

    MSRP $175.00

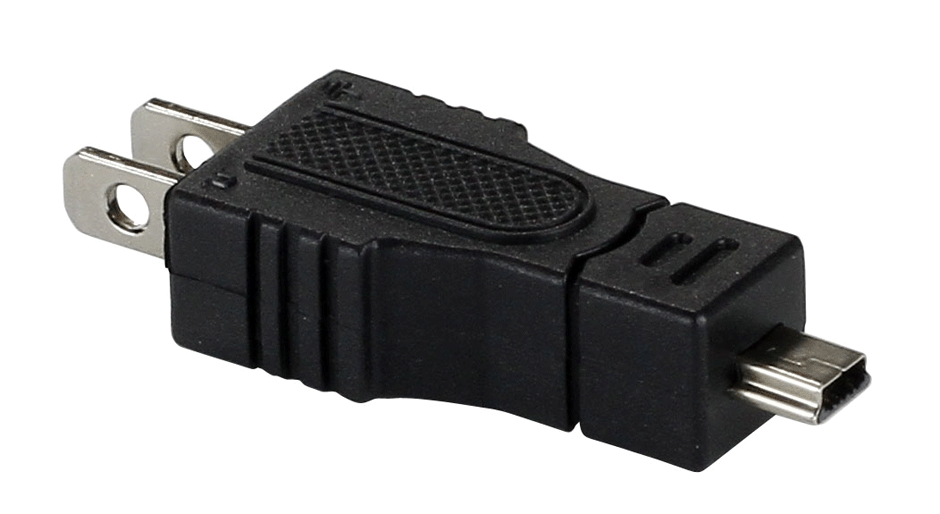

  • Replacement Probe Compensator Connector with USB Plug for 2510 Series

    Model UCP2510

    MSRP $10.00
