2540C Series

70 MHz, 100 MHz, and 200 MHz 1 GSa/s DSO and MSO

Model 2540C-MSO

MSRP $0 / 3 Yr Warranty
Where to Buy

The 2540C Digital Storage and Mixed Signal Oscilloscope (MSO) Series delivers advanced features and debug capabilities for a wide range of applications at an entry-level price point. With up to 200 MHz bandwidth in a 2-channel configuration, each model offers a maximum sample rate of 1 GSa/s, and a maximum memory depth of 14 Mpts. In addition, these oscilloscopes provide an 8” color display with 256 levels of color grading combined with a high waveform update rate up to 60,000 wfms/s, which allows the instruments to capture infrequent glitches with excellent signal fidelity. The MSO upgrade provides 16 additional digital channels and the Decode upgrade provides serial bus decoding for I2C, SPI, UART/RS232, CAN, and LIN protocols. These digital oscilloscopes are ideal for applications in design and debugging, service and repair, and education. To purchase an MSO or Decode license key, please fill out the license request form.

  • Bandwidth up to 200 MHz
  • 1 GSa/s maximum sample rate
  • 14 Mpts maximum record length

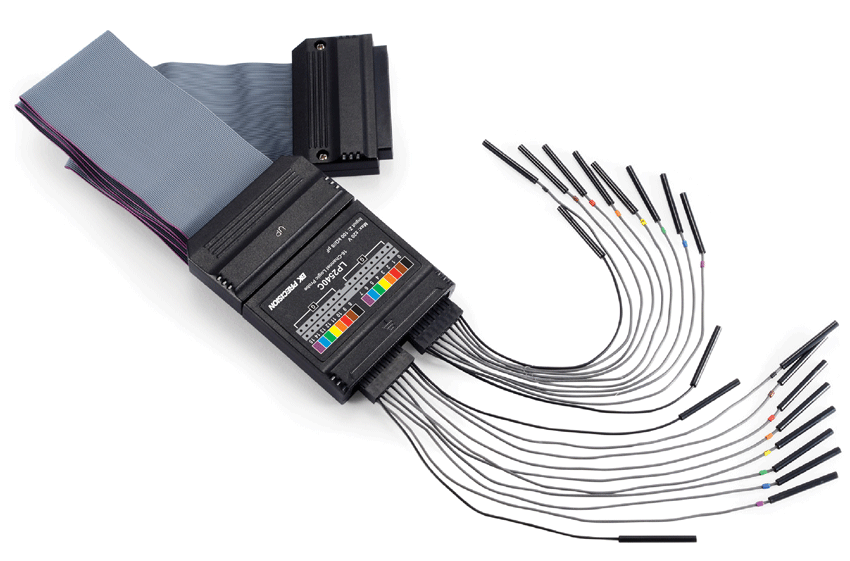

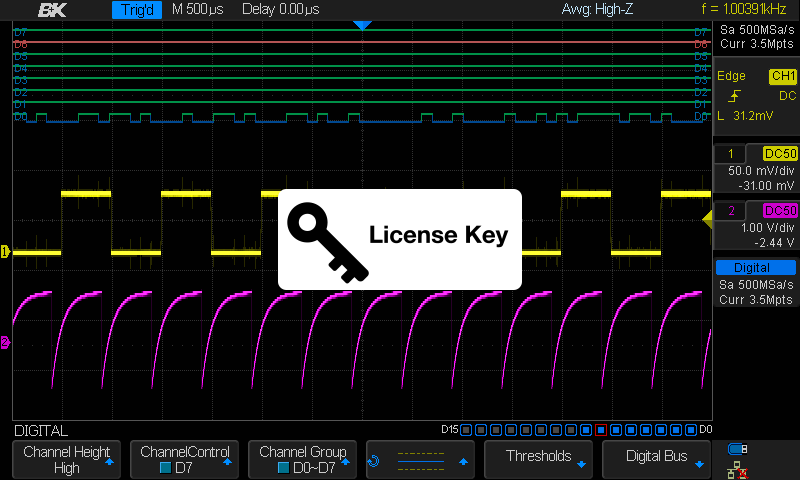

  • 16 digital channels with logic analyzer (included with -MSO models or with MSO upgrade)

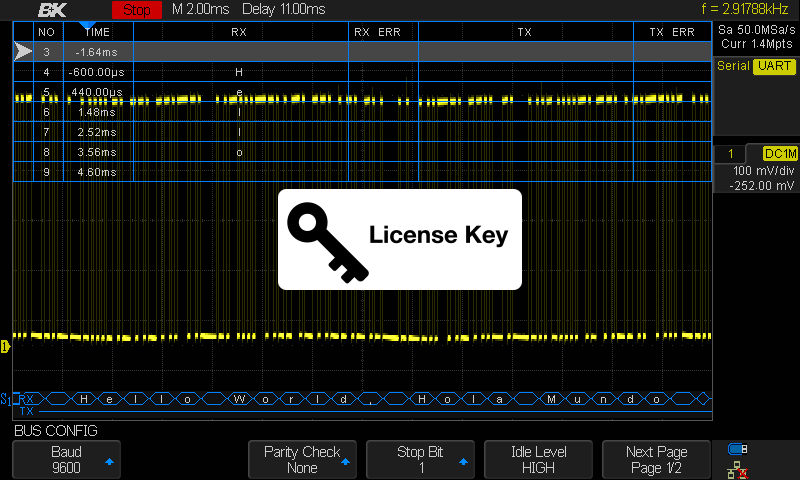

  • Serial bus decoding for I2C, SPI, UART/RS232, CAN, and LIN protocols (Decode upgrade)
  • Built-in Function and Arbitrary Waveform Generator comes standard on all models
  • Large 8" widescreen display with 256-level color gradient
  • 60,000 wfms/s maximum waveform capture rate
  • Compact footprint and lightweight
  • Segmented acquisition history waveform record function (record length up to 80,000 frames)
  • Serial triggering comes standard on all models
  • Standard LAN and USBTMC-compliant USB device port
  • Selectable 50 Ω and 1 MΩ input coupling
Model Bandwidth MSO MSRP

Documentation

Software

Description Version Download
Operating Software (Windows XP/Vista/7/8.1/10) 1.02.01.18 Operating_scope_software.zip
Generator Operating Software (Windows XP/Vista/7/8.1/10) 1.1.1.36 Waveform_generator_software.zip
