Quad Display Triple Output DC Power Supplies

1672 and 1673: Model 1673

The 1672 and 1673 are quad display triple output DC power supplies that provide two variable outputs and one fixed output. The four displays allow the user to continuously monitor the voltage and current values of the two main outputs. The variable outputs can work independently, in series tracking, or parallel mode.

  • Three independent outputs
  • Independent control knobs for voltage and current settings of variable outputs
  • CV (constant voltage) and CC (constant current) operation
  • Separate 3-digit voltage and current displays for variable outputs
  • LED indication for CV and CC modes
  • Overload indication LED for fixed output
  • Series tracking and parallel tracking mode operation
  • Output terminals are banana style (not binding posts), click on Accessories for leads

Model Guide
Model 1672 1673
Voltage (variable outputs) 0-32 V 0-32 V
Current (variable outputs) 0-3 A 0-6 A
Fixed output 5 V / 3 A 5 V / 3 A

    • 5A Hook-Up Cable Set
    • Model# TL 5A

      • 4mm Banana plug to alligator clip
      • 5A rating
      • Black and Red pair
      • 40" (1.0m) length

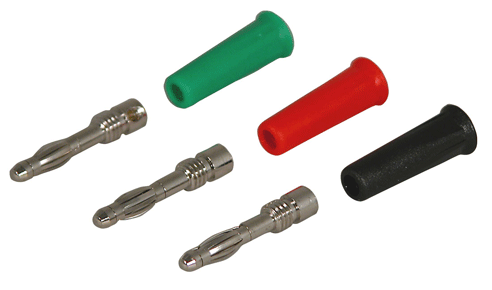

    • Do It Yourself Solderless Un-Sleeved Banana Plug Kit
    • Model# TL 9110

    • Insulated in-line plug for wire assembly. Attach wire using solderless screw then twist plug into the insulator.

      • Materials: Body: Polyamide (Nylon); Plug: Brass, Nickel Plt; Contact: BeCu, Nickel Plt
      • Kit contains a Red, Green and Black assembly

    • 50cm Stacking Retractable Sleeve Plug Output Cable Kit
    • Model# TL 9120

    • Added safety and protection when standard jack connections are encountered. Clear covering sleeve retracts as you plug into the jack. Banana plug includes a Red plastic insulation tip for added protection.

      • Materials: Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.
      • Banana Contact: BeCu, Nickel Plt.
      • Kit contains a Red, Green and Black cable

    • 150cm Stacking Retractable Sleeve Plug Output Cable Kit
    • Model# TL 9160

    • Added safety and protection when standard jack connections are encountered. Clear covering sleeve retracts as you plug into the jack. Banana plug includes a Red plastic insulation tip for added protection.

      • Materials: Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.
      • Banana Contact: BeCu, Nickel Plt.
      • Kit contains a Red, Green and Black cable
