Model 894

894 and 895 Series

500kHz LCR Meter

Price: $4150 / 3 yr Warranty

Name Qty Last Updated
MOUSER ELECTRONICS 2 2022-10-01
DIGI-KEY 7 2022-10-03
SEFRAM 6 2022-10-03
NEWARK 8 2022-10-05
FARNELL 8 2022-10-05
TESTEQUITY 1 2022-10-05
WHOLE SALE ELECTRONICS 6 2022-10-05

Overview

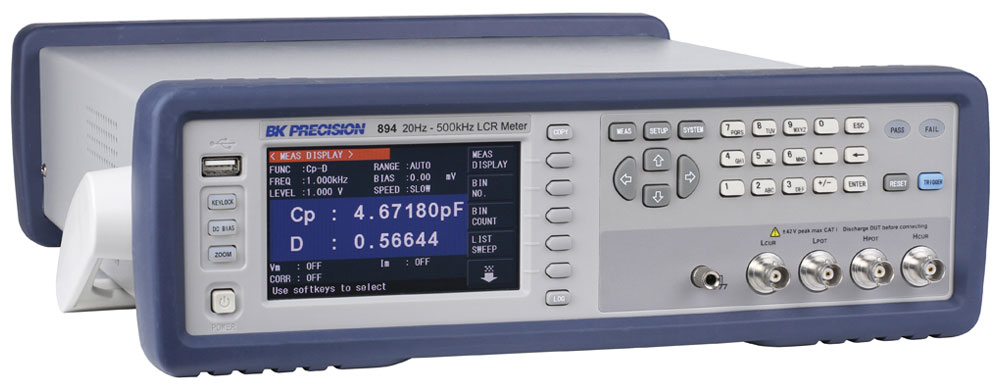

The 894 Bench LCR meter is capable of measuring inductors, capacitors, and resistors at DC or from 20 Hz to 300 kHz. The instrument's compact 2U half-rack form factor is suitable for the bench or rack mount installation. A large 4.3" color display with all important parameters and measurements visible on one screen makes this meter easy to operate.

The instrument's convenient bin sorting function and frequency sweep function enables quick sorting and characterization of components. Standard USB, GPIB, and LAN interfaces enhance your productivity by providing remote control capabilities to perform daily operations in production, quality control, and laboratory environments.

  • Measurement parameters: L, C, R, Z, G, B, Y, D, Q, θ, DCR
  • 0.05% best impedance accuracy
  • Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
  • 0.5 Vrms and 1 Vrms selectable test levels
  • Adjustable measurement speed for fast readout or better accuracy
  • 300-point linear and logarithmic sweep function
  • Bin sorting function (9 primary, one secondary, and one out-of-spec bin)
  • Save/recall up to 100 setups (10 internal) including 1000 measurements and screenshots

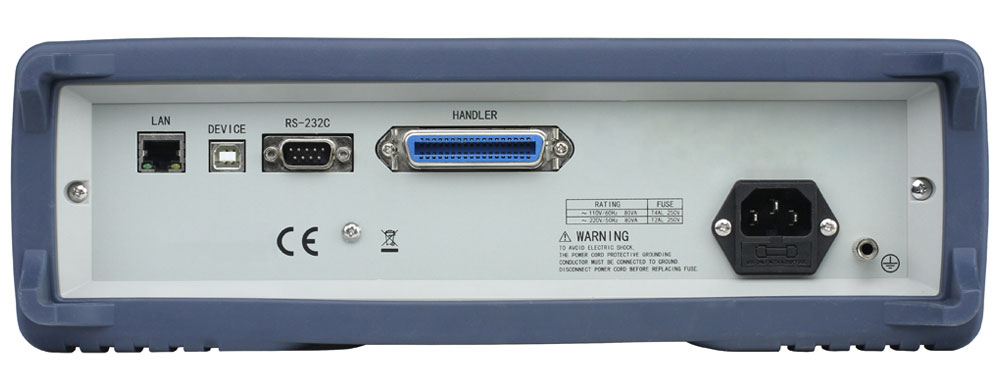

  • Standard USB (Virtual COM), RS232, and LAN interface for remote control

Models

Product MSRP
895 $6300
894 $4150

Documents

Documentation


Software

Description

Version

Download

Accessories

TLBSB

Shorting Bar

TLBSB

Brass shorting bar used for short correction.

MSRP
$9
TL89S1

Bench LCR Meter SMD Test Fixture

TL89S1

Test fixture for measuring small surface-mount devices (SMD)

  • Frequency: DC to 10MHz
  • DC Bias:+/- 40V peak max (AC+DC)
  • Operating Temperature: 0 to 40 degrees C
  • Terminal Connection: BNC, 4 terminal-pair
  • Dimensions(WxHxD): 5.125 x 2.37 x 3.31 inches (130 x 60.3 x 84mm) approximate
  • Weight: 0.67 lbs (0.305 kg) approximate



TL89S1 Data Sheet and User Guide



MSRP
$427
TL89F2

Component Test Fixture

TL89F2

Low profile test fixture for convenient testing of radial leaded type components.

  • Frequency: DC to 10MHz
  • DC Bias:+/- 40V peak max (AC+DC)
  • Operating Temperature: 0 to 40 degrees C
  • Terminal Connection: BNC to 4 terminal radial slots

MSRP
$108
TL89F1

Bench LCR Meter Test Fixture

TL89F1

Test fixture for convenient testing of axial and radial leaded type components.

  • Frequency: DC to 10MHz
  • DC Bias:+/- 40V peak max (AC+DC)
  • Operating Temperature: 0 to 40 degrees C
  • Terminal Connection: BNC to 4 terminal insertion slots (radial or axial)

MSRP
$112
TL89T1

Transformer Test Fixture

TL89T1

Test fixture used to test the primary and secondary inductance, turn ratio, mutual inductance, and primary and secondary direct-current resistance of a transformer directly.



TL89T1 Manual



MSRP
$106
TL89K1

Kelvin Clip Test Fixture

TL89K1

BNC to Kelvin clip test ficture for testing of leaded components.

MSRP
$68
