DAS 30/50/60 Series

High Speed Multi-Function Recorders

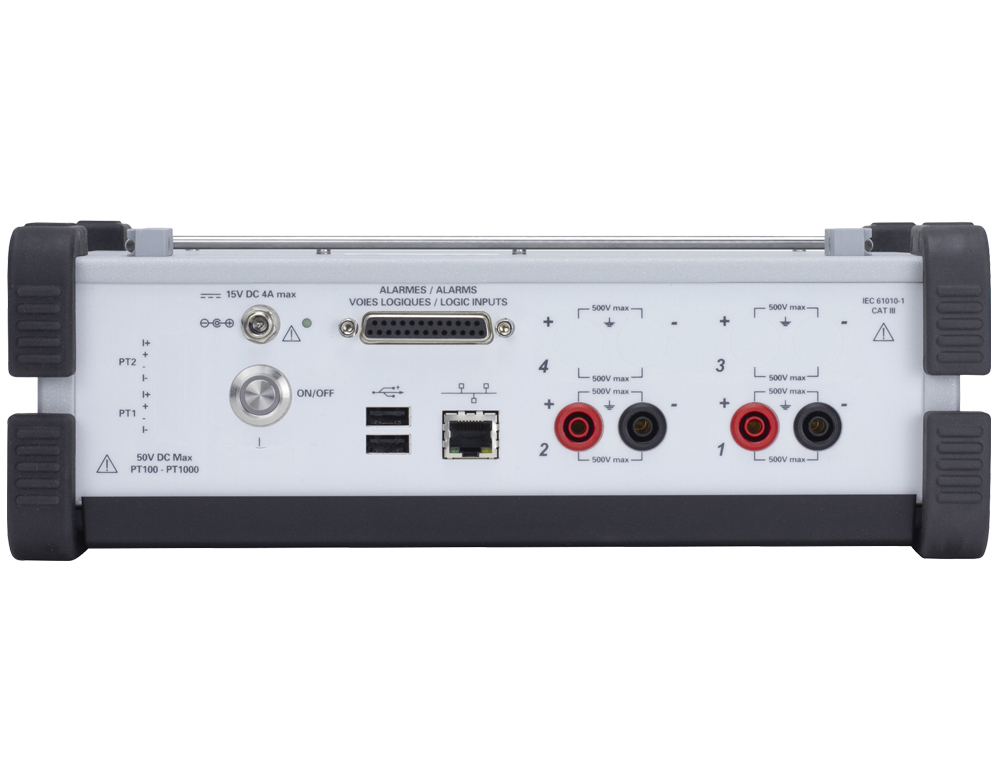

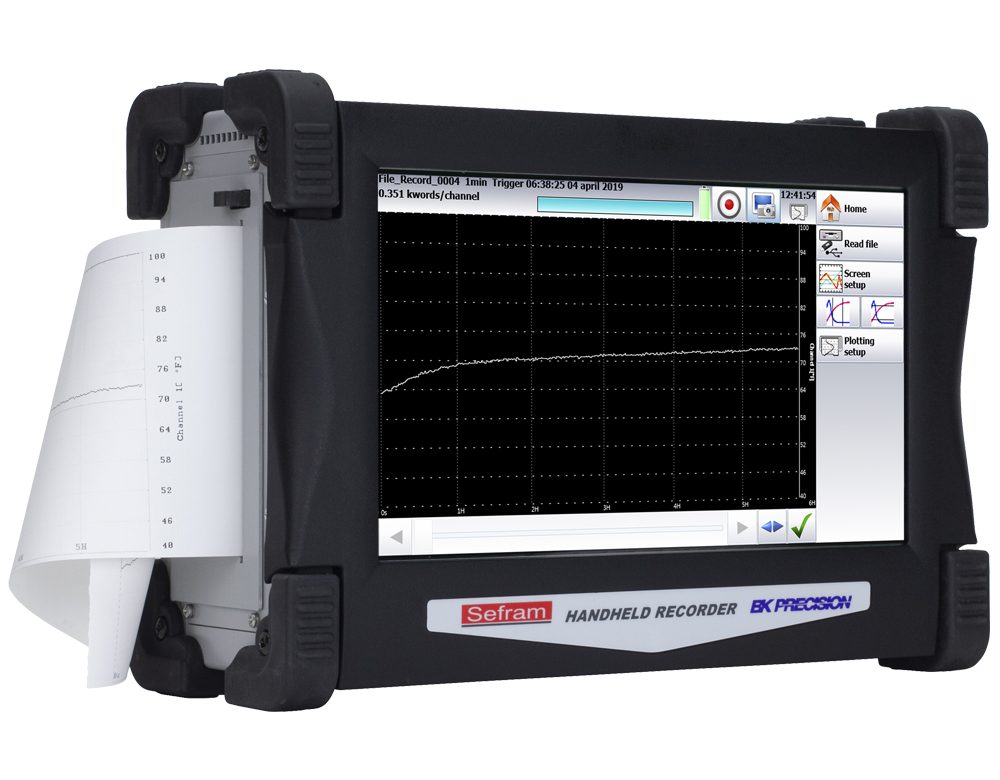

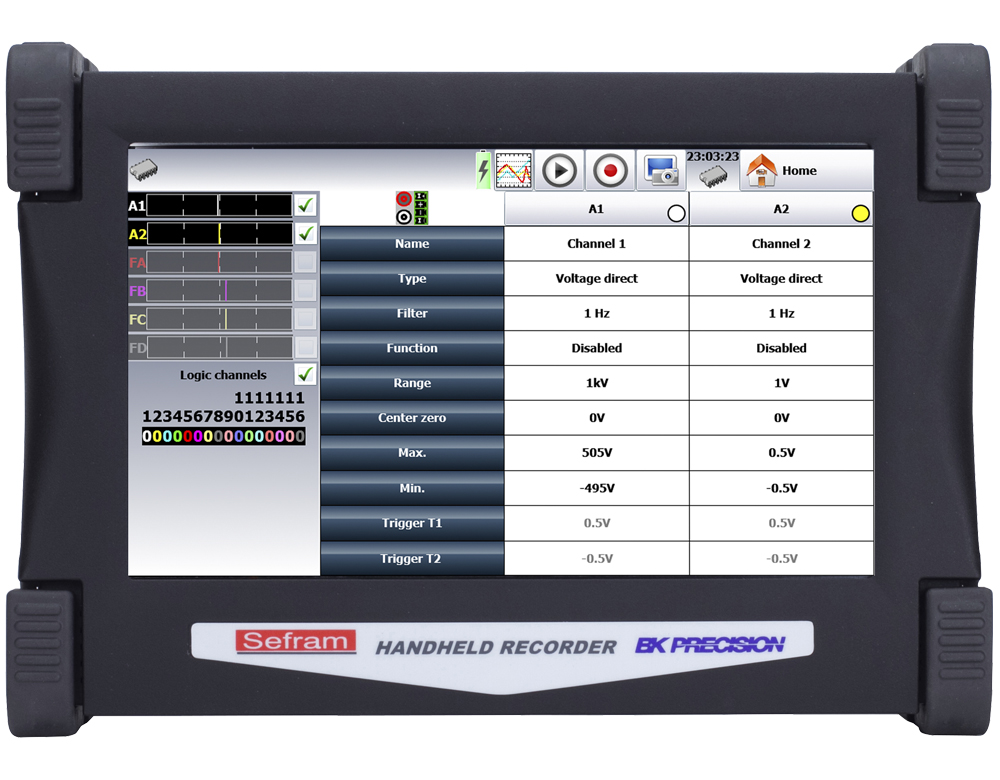

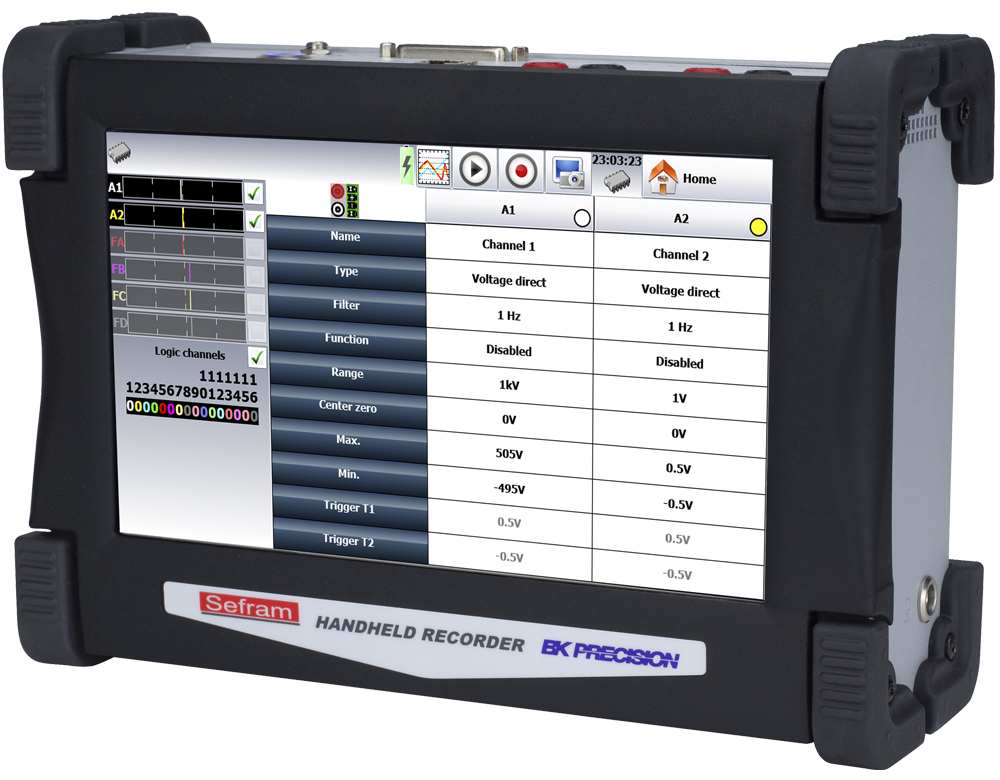

Model DAS30-P

MSRP $4,000 / 2 Yr Warranty
Where to Buy

The DAS 30/50/60 high-speed multi-function recorders feature versatile channel configurability, high-speed sampling (1 MSa/s), a wide input range (±5 mV to ±500 V), large internal solid-state memory of up to 64 GB, and 9.5 hours of battery life. Combined with the CAT III isolation rating, these instruments are well suited for applications ranging from small sensor signal logging to electrical power analysis.

The best-in-class 2 µs sampling interval in file mode lets you capture transient events with confidence. Additionally, the large built-in memory allows for data recording over longer periods of time.

Each channel can record a different signal such as voltage, temperature, current or frequency simultaneously, using a common time base. The next-generation touchscreen features unlimited data scrolling, zoom in/out function as well as drag and drop delta cursors for precision measurements.

Features and benefits:

  • Fast 1 MSa/s sample rate (memory mode) and 100 kHz bandwidth for capturing intermittent events
  • Accurately view and record signals from ±5 mV to ±500 and 424 VRMS
  • CAT III 600 V rated isolated channels
  • Wide 10-inch touchscreen TFT display
  • Capture mixed signals with one instrument, such as high voltage, current waveforms, temperature, and logic data
  • Battery life up to 9.5 hours
  • 64 GB (DAS60) and 32 GB (DAS30/50) internal solid-state memory
  • 2, 4, or 6 analog input channels
  • 14-bit resolution
  • 16 logic input channels
  • Temperature measurements supporting thermocouples and Pt100/Pt1000 sensors (factory option on DAS30/50)
  • WiFi monitoring and control (standard USB WiFi dongle required)
  • 2 USB host ports and one LAN interface
  • 110 mm thermal printer (factory option)

Applications:

  • Measure signals ranging from small sensors to large electrical systems
  • Maintenance and failure analysis
  • Power analysis of single and three-phase systems
Model Number of Channels Factory Options MSRP
DAS30 2 - $3,100
DAS30-T 2 Pt100/Pt1000 $3,580
DAS50 4 - $3,990
DAS30-P 2 Thermal Printer $4,000
DAS50-T 4 Pt100/Pt1000 $4,470
DAS30-PT 2 Thermal Printer, Pt100/Pt1000 $4,480
DAS50-P 4 Thermal Printer $4,890
DAS50-PT 4 Thermal Printer, Pt100/Pt1000 $5,370
DAS60 6 Pt100/Pt1000 $5,490
DAS60-P 6 Thermal Printer $6,390

Documentation

Software

Description Version Download
Remote control and setup 1.16 SeframPilot.zip
Display and view recorded data 3.0 SeframViewer.zip
  • 0.01 Ohm Shunt, 0.5%, 30 A max

    0.01 Ohm Shunt, 0.5%, 30 A max

    Model 207030301

    • 0.01 Ohm
    • 0.5%
    • 50 A
    Non isolated (to be used with low voltage applications)

    MSRP $375.00

  • 0.001 Ohm Shunt, 0.5%, 50 A max

    0.001 Ohm Shunt, 0.5%, 50 A max

    Model 207030500

    • 0.001 Ohm
    • 0.5%
    • 50 A
    Non isolated (to be used with low voltage applications)

    MSRP $325.00

  • Single Roll of Replacement Thermal Printer Paper

    Single Roll of Replacement Thermal Printer Paper

    Model 837500526
    One each

    10 meter long
    110mm wide

    For use with:

    • DAS30-P
    • DAS30-PT
    • DAS50-P
    • DAS50-PT
    • DAS60-P

    MSRP $10.00

  • Logic channels patch cord

    Model 902407000
    For use with:

    • DAS220-BAT
    • DAS240-BAT
    • DAS30
    • DAS30-P
    • DAS30-T
    • DAS30-PT
    • DAS50
    • DAS50-P
    • DAS50-T
    • DAS50-PT
    • DAS60
    • DAS60-P
    • DAS1700
    • 8460

    MSRP $310.00

  • Replacement rugged Carrying Case for DAS30 and DAS50

    Replacement rugged Carrying Case for DAS30 and DAS50

    Model 903001000
    For use with:

    • DAS30
    • DAS30-P
    • DAS30-T
    • DAS30-PT
    • DAS50
    • DAS50-P
    • DAS50-T
    • DAS50-PT

    MSRP $195.00

  • Rackmount kit for DAS30 and DAS50

    Rackmount kit for DAS30 and DAS50

    Model 903004000
    Rackmount kit for DAS30 and DAS50

    MSRP $399.00

  • Rackmount kit for DAS60

    Rackmount kit for DAS60

    Model 906001000
    Rackmount kit for DAS60

    MSRP $399.00

  • Replacement rugged Carrying Case for DAS60

    Replacement rugged Carrying Case for DAS60

    Model 906002000
    Replacement rugged carrying case for DAS60 and DAS60-P

    MSRP $195.00

  • 0.01 Ohm Shunt, 1%, 3 A max

    0.01 Ohm Shunt, 1%, 3 A max

    Model 910007100
    • 0.01 Ohm
    • 1%
    • 3 A
    • Banana plug

    MSRP $150.00

  • 0.1 Ohm Shunt, 0.1%, 3 A max

    0.1 Ohm Shunt, 0.1%, 3 A max

    Model 910007200
    • 0.1 Ohm
    • 1%
    • 3 A
    • Banana plug

    MSRP $150.00

  • 10 Ohm Shunt, 0.1%, 0.15 A max

    10 Ohm Shunt, 0.1%, 0.15 A max

    Model 912008000
    • 10 ohm
    • 0.1%
    • 0.15 A
    • Banana plug

    MSRP $99.00

  • Isolated logic channel module

    Model 984405500
    • 16 isolated logical channels (250V)
    • Direct connection to the SEFRAM recorder
    • Compatible with all Sefram recorders
    • Power supply for external sensor
    • 3 Alarms (output)
    • Input with safety bananas or fast connectors
    • Supplied with interface cable and fast connectors

    MSRP $1,040.00

  • 1 Ohm Shunt, 0.1%, 0.5 A max

    1 Ohm Shunt, 0.1%, 0.5 A max

    Model 989006000

    • 1 Ohm
    • 0.1%
    • 0.5 A
    • Banana plug

    MSRP $150.00

  • 50 Ohm Shunt, 0.5%, 50 A max

    50 Ohm Shunt, 0.5%, 50 A max

    Model 989007000

    • 50 Ohm
    • 0.5%
    • 50 A
    • Banana plug

    MSRP $150.00

  • Flexible Current Clamp

    Flexible Current Clamp

    Model A1587
    • Diameter : 25 cm
    • 3 ranges : 30A/300A/3000A
    • Universal plug inputs

    MSRP $339.00

  • AC Current Clamp 200 A

    AC Current Clamp 200 A

    Model SP201
    • Current clamp 200 A AC
    • Output voltage 10 mV/A
    • Bandwidth 40 Hz to 5 kHz
    • Jaw opening 15 mm

    MSRP $115.00

  • AC Current Clamp 100 A

    AC Current Clamp 100 A

    Model SP221
    • Current clamp 100 A AC
    • Output voltage 100 mV/A
    • Bandwidth 40 Hz to 5 kHz
    • Jaw opening 15 mm

    MSRP $190.00

  • AC Current Clamp 1200 A

    AC Current Clamp 1200 A

    Model SP230
    • Current clamp 1200 A AC
    • Output voltage 10 mV/A
    • Bandwidth 40 Hz to 5 kHz
    • Jaw opening 50 mm

    MSRP $245.00

  • AC/DC Current Clamp with Banana Connectors

    AC/DC Current Clamp with Banana Connectors

    Model SP261
    AC/DC current clamp with banana connectors
    • 1,200 A
    • Output voltage 1 mV/A
    • Jaw opening 50 mm

    MSRP $489.00

  • AC Current Clamp 2000 A

    AC Current Clamp 2000 A

    Model SP270
    • Current clamp 2000 A
    • Voltage output 1 mV/A
    • Bandwidth 40 Hz to 5 kHz
    • Jaw opening 70 mm
    • CAT III Rated

    MSRP $540.00
