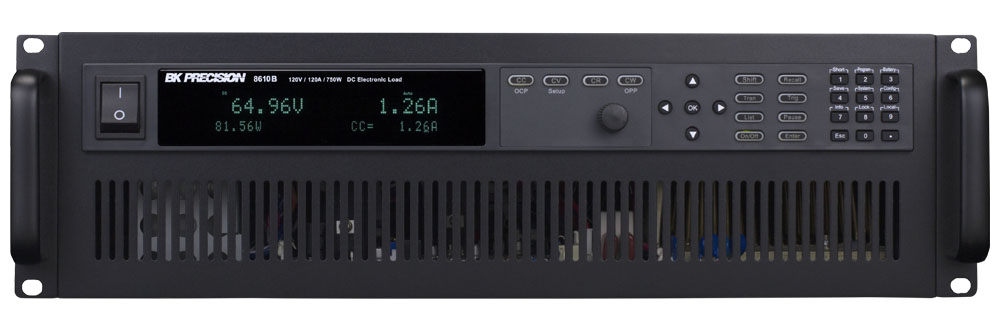

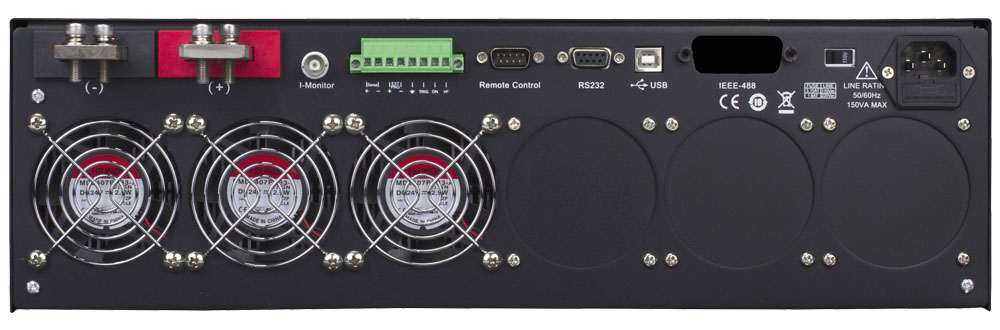

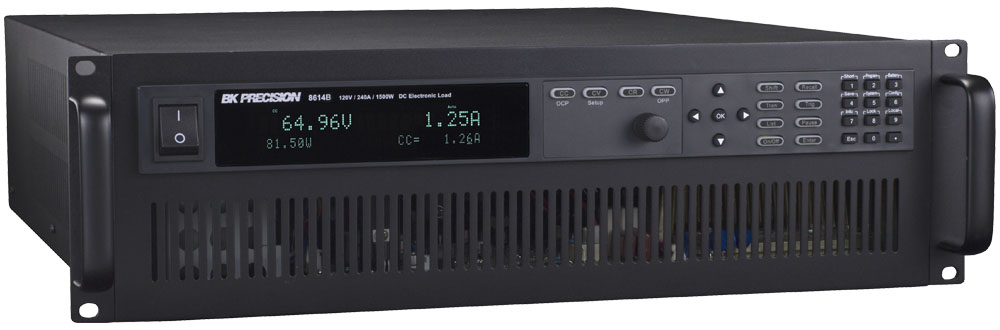

Model 8610B

8600 Series

750 W Programmable DC Electronic Load without GPIB

Price: $2820 / 3 yr Warranty

Name Qty Last Updated
DIGI-KEY 6 2022-10-03
SEFRAM 13 2022-10-03
FARNELL 3 2022-10-05
DISTRELEC 1 2022-10-05
WHOLE SALE ELECTRONICS 13 2022-10-05

Overview

The 8600/B Series programmable DC electronic loads provide the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz, and high 16-bit measurement resolution and accuracy, these DC loads can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

The DC electronic loads can operate in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode. This series provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant) or RS232 serial interfaces for remote communication. GPIB is available as an option on select models.

  • Wide voltage and current range, 0 to 500 V, 0 to 240 A
  • CC/CV/CR/CW operating modes
  • Transient mode up to 25 kHz
  • 16-bit resolution voltage and current measurement
  • List mode function
  • Adjustable slew rate in CC mode
  • Short circuit test
  • Built-in battery test function with voltage level, capacity level, and timer stop conditions
  • CR-LED mode to simulate the loading behavior of typical LEDs
  • Remote voltage sensing to compensate for the effect of voltage drop in wires
  • Analog current control and monitoring
  • Standard USB (USBTMC-compliant) and RS232 interfaces with SCPI protocol support
  • GPIB optional on select models
  • OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection

Models

Product Max Voltage Max Current Max Power Channels MSRP
8625 120 V 720 A 6000 W 1 $15050
8624 120 V 600 A 450 W 1 $12700
8622 500 V 100 A 2500 W 1 $10350
8620 120 V 480 A 3000 W 1 $8300
8616 500 V 60 A 1200 W 1 $5150
8614 120 V 240 A 1500 W 1 $4360
8614B 120 V 240 A 1500 W 1 $4170
8612 500 V 30 A 750 W 1 $3780
8612B 500 V 60 A 1200 W 1 $3590
8610 120 V 120 A 750 W 1 $3010
8610B 120 V 120 A 750 W 1 $2820
8602 500 V 15 A 200 W 1 $1770
8601 120 V 60 A 250 W 1 $1725
8602B 500 V 15 A 200 W 1 $1590
8601B 120 V 60 A 250 W 1 $1535
8600 120 V 30 A 150 W 1 $1425
8600B 120 V 30 A 300 W 1 $1235

Documents

Documentation


Software

Description

Version

Download

Accessories

TLPWR1

High current premium test lead accessory

TLPWR1

High quality red and black cable with externally braided wrap with large fork-type spade connectors for connecting to high current power supplies or DC loads.

  • Length: 2 m
  • Rated current: 60 A
  • Gauge: 8 AWG
  • Connector inner diameter: 8 mm (approximate)
  • Connector outer width: 15 mm (approximate)
  • Wire material: flexible silicon jacket

MSRP
$110
IT-E151

Rack mount kit for select models

IT-E151

The IT-E151 is for rack mounting of compatible products in either a side-by-side configuration or single unit configuration where a provided blank is used to fill the empty space. The dimensions for the kit are 5.24" (133mm) by 19" (482.6mm).

Compatible models:

- 1785B Series - 8512
- 9120A Series - 8514
- 9150 Series - 8518
- 9130B Series - 8600
- 8542B - 8601
- 8500/B - 8602
- 8502/B - 9801
- 8510/B - 9200 Series



IT-E151 Instruction Manual

MSRP
$93
