0-35 VDC, 0-10A, DC Power Supply

Discontinued Model 1744A

Discontinued: August 24, 2015 MSRP $685 / 2 Yr Warranty
  • 0-35V, 0-10A, Digital DC Power Supply
    • 0-35V, 0-10A, Digital DC Power Supply
    • Model 1745A

    • These bench DC power supplies have both coarse and fine voltage and current control knobs and dual LED displays to continuously monitor both output current down to 1 mA and voltage down to 10 mV

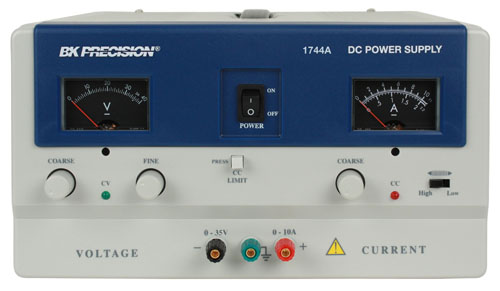

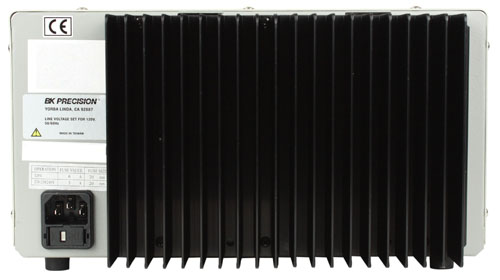

B&K Precision's model 1744A is a 0 to 35V, 0 to 10A DC Power Supply. This power supply has all of the great features you would expect B&K Precision power supplies to have, and some new features not normally seen on power supplies in this price range, these features include a output shorting button. The output-shorting button allows the user to short the output terminals to set the current limit.

  • Continuously monitor voltage and current output on two analog meters
  • Connect two supplies in parallel to double the current output
  • Connect two supplies in series to double the voltage output
  • Reliable, Durable
  • Operate continuously at full load without overheating
  • Fully overload protected
  • Coarse and fine voltage controls
  • Excellent regulation
  • Very low ripple
  • Constant voltage or constant current operation

Documentation

  • 5A Hook-Up Cable Set

    5A Hook-Up Cable Set

    Model TL 5A



    • 4mm Banana plug to alligator clip
    • 5A rating
    • Black and Red pair
    • 40" (1.0m) length



    MSRP $11.00

  • Power Supply Test Leads Set

    Power Supply Test Leads Set

    Model TLPS

    This accessory kit combines safety and functionality. A must have for anyone who uses power supplies or loads.

    • Medium and large insulated alligator clips
    • Black and red components
    • Sense lead included





    Description Max current
    Red and black test lead (120 cm) 25 A
    Spade lug adapters (6 & 4 mm) 36 A
    Standard alligator clips 3 A
    4 mmBanana plug adapters 36 A
    Large insulated alligator clips 36 A
    Red and black sense leads (10 cm) 3 A

    MSRP $57.00
