Deluxe Dual Display 51,000 Count DMM

Discontinued Model 2890A

Discontinued: February 18, 2010 MSRP $319 / 3 Yr Warranty

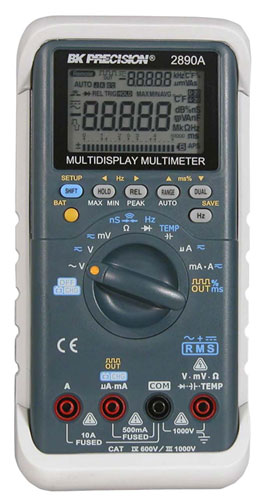

The 2890A is a Dual Display 51,000 Count DMMs with exceptional accuracy and functionality. It offers superb performance with many features that are useful for trouble shooting electronic and electrical circuits or to test and evaluate circuits in a field service application.

Features:

  • True RMS ACV and ACA
  • AC+DC True RMS
  • 5 Digit LCD for both the primary and secondary displays
  • 21 Segment analog bar graph
  • Automatic polarity indicator
  • 0.025% Basic DCV accuracy
  • Resistance measurements up to 500Mohm
  • Conductance measurements up to 50nS with 0.01nS resolution
  • Capacitance measurements
  • Frequency with ACV measurement
  • Data Hold
  • dBm Measurements
  • REL Mode
  • 1ms Peak Hold for glitch capture
  • Back lit LCD
  • Frequency counter up to 20MHz
  • Square Wave output with 28 frequency ranges and adjustable duty cycle
  • Conforms to IEC-1010-1 600V CAT IV and 1000V CAT III
  • CE Approved

Documentation

Software

Description Version Download
Operating software V1.14 AK2880B.zip
  • AC/DC Clamp Accessory for DMMs

    AC/DC Clamp Accessory for DMMs

    Model CP 3
    • Converts any DMM to a current clamp
    • Measures current without disconnecting circuit under test
    • Measures to 400A DC/AC
    • Outputs 1mV per Amp, operates on 2V range of any DMM
    CP 3 Manual

    MSRP $102.00

  • DMM Carrying Case

    DMM Carrying Case

    Model LC 29B
    • Light weight, durable Cordura nylon Protects your instruments
    • Made in the U.S.A.
    • Room to hold your test leads
    • Approximate Internal Dimensions: 4" x 2.5" x 8" (102 x 64 x 203mm)

    MSRP $20.00

  • Thermocouple Bead Probe, -50 to 200 C

    Thermocouple Bead Probe, -50 to 200 C

    Model TP 29

    Replacement thermocouple temperature probe for meters with K-type thermocouple inputs. PTFE insulated wire with exposed junction allows for fast air, gas, or general purpose measurments.

    MSRP $12.00

  • K-Type Transition Temperature Adapter for model 2890

    K-Type Transition Temperature Adapter for model 2890

    Model TP-A

    MSRP $16.00
