20 MHz DDS Sweep Function Generator

Discontinued Model 4040DDS

Discontinued: June 19, 2013 MSRP $699 / 3 Yr Warranty

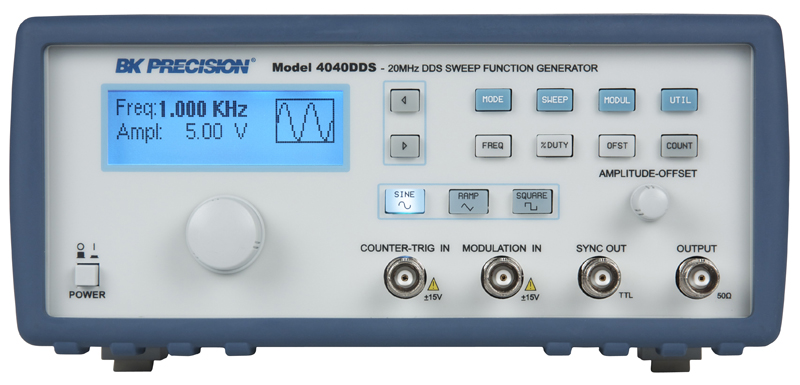

The model 4040DDS is a must have for anyone needing a low cost, full featured direct digital synthesis (DDS) generator with a menu-driven front panel interface that includes a large, easy-to-read graphical LCD display. Waveform parameter changes and data entry can be made using the front panel rotary knob. The unit generates superb quality waveforms with high signal precision and stability. It provides sine & square wave outputs over the frequency range from 0.1 Hz to 20 MHz in one extended range (triangle/ramped wave outputs to 2MHz). A full range of triggering capabilities is available, including internal-external trigger source and gated modes of operation.

  • 20MHz Frequency Range (sine & square only)
  • Sine, Square, & Triangle
  • Modulation in both AM & FM
  • Lin or Log Sweep Function
  • Adjustable Duty Cycle
  • Adjustable DC Offset
  • Bright Informative LCD

Documentation

  • BNC Breakout to Alligator Clips

    BNC Breakout to Alligator Clips

    Model CC-21

    Standard BNC to Alligator clips test leads.

    • 50 ohm impedance
    • RG58C/u cable
    • 500Vrms voltage rating
    • 40" cable length

    MSRP $13.00

  • Function Generator Test Leads Set

    Function Generator Test Leads Set

    Model TLFG

    General purpose test probe set that includes BNC to BNC cables, BNC adapters and test clips.

    MSRP $115.00
