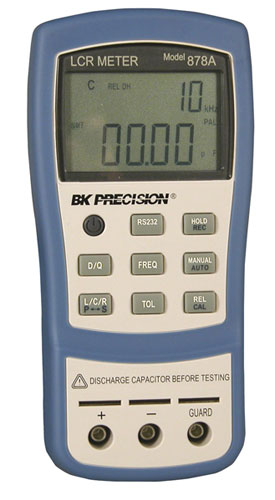

Universal LCR Meter
Discontinued Model 878A
Discontinued: February 15, 2010 MSRP $249 / 1 Yr Warranty
-
- 40,000 Count Dual Display Handheld LCR Meter
- Model 878B
Auto ranging, dual display LCR meter with selectable test frequencies of 120 Hz & 1 kHz. Has a USB PC interface.
-
- 40,000 Count Dual Display Handheld LCR Meter with ESR
- Model 879B
Auto ranging, dual display LCR meter with ESR. Selectable test frequencies of 100 Hz, 120 Hz, 1 kHz & 10 kHz. Has a USB PC interface.
The 878A measures capacitance, resistance (of non-inductive components) and inductance. Components can be measured with selectable test frequencies in series or parallel modes as desired. The 4 1/2 digit main LCD displays values to 19,999, and the secondary 3 digit 1,000 count display reads D or Q. Both models can be used in either auto ranging or manual ranging modes.
Features
- Selectable test frequencies 120Hz, 1KHz
- Simultaneously displays measured component value and Q or Dissipation Factor (D)
- Display hold
- Relative mode
- Tolerance mode
- RS 232 Interface (cable and software required)
Documentation
Software
| Description | Version | Download |
|---|---|---|
| Operating software | V1.01 | AK87x.zip |
-
DMM Carrying Case
Model LC 29B
- Light weight, durable Cordura nylon Protects your instruments
- Made in the U.S.A.
- Room to hold your test leads
- Approximate Internal Dimensions: 4" x 2.5" x 8" (102 x 64 x 203mm)
MSRP $20.00
-
Tweezer Test Lead (Surface Mount)
Model TL 8
Two conductor leads 400V rms, 1A
For measuring small SMT type components like capacitors, resistors & inductors
MSRP $34.00
-
Test leads for handheld LCR meters (Sheathed)
Model TL LCR
- Includes one red and one black lead
- 5" Long sheathed banana to alligator clip
- Short length allows for accurate component measurements
- Used with LCR Meters and Capacitance Meters
MSRP $11.00
