Model 1900B

1900B Series

1-16 V, 60 A Switching DC Power Supply

Price: $765 / 2 yr Warranty

Name Qty Last Updated
VALUETRONICS 3 2022-10-01
MOUSER ELECTRONICS 31 2022-10-01
SEFRAM 46 2022-10-03
NEWARK 41 2022-10-05
TME 2 2022-10-05
FARNELL 3 2022-10-05
DISTRELEC 1 2022-10-05
TESTEQUITY 3 2022-10-05
WHOLE SALE ELECTRONICS 46 2022-10-05
ALLIED ELECTRONICS 4 2022-10-05

Overview

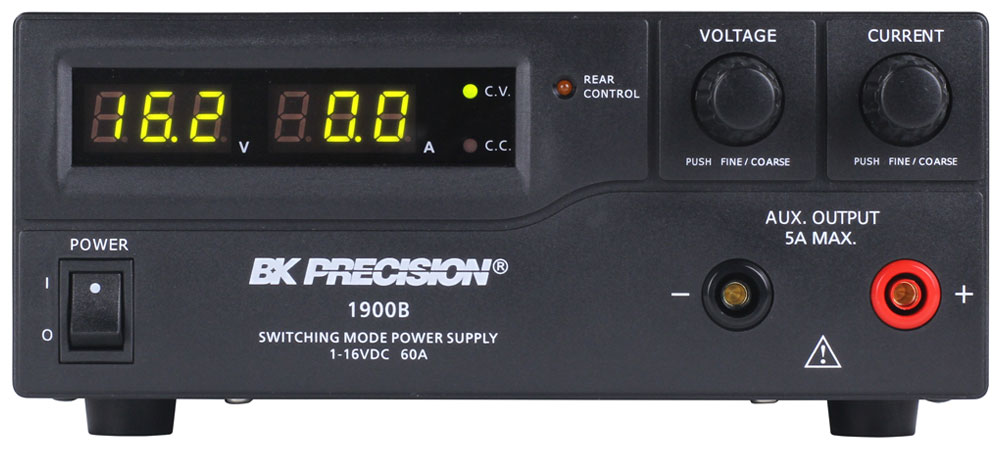

Models 1900B, 1901B, and 1902B are laboratory grade switching mode DC power supply with high current output in a small form factor and lightweight package. The supplies provide various configurations of high output voltage or high output current and make setting voltage and current levels fast and precise through its dual action, coarse/fine rotary encoder control. In addition to constant voltage (CV) and constant current (CC) modes, the high efficiency DC power supplies offer a unique solution with its preset and remote control modes. Save up to three different presets of voltage and current values for quick recall. The remote control function allows the output power, voltage, and current to be adjusted without touching the front panel of the power supply. A remote sensing terminal is also available (model 1900B only) for use to compensate for long output line losses. These features make the 1900B Series suitable for a wide range of applications including production testing, telecommunications, R&D, service, and university labs.

  • Automatic CV/CC crossover operation
  • Lightweight and compact
  • Rotary encoder control for precise voltage and current setting
  • 3 user-defined voltage and current presets
  • USB interface with PC software for remote control and external timed programming
  • Analog remote control function
  • Overvoltage, overtemperature, and overload protection

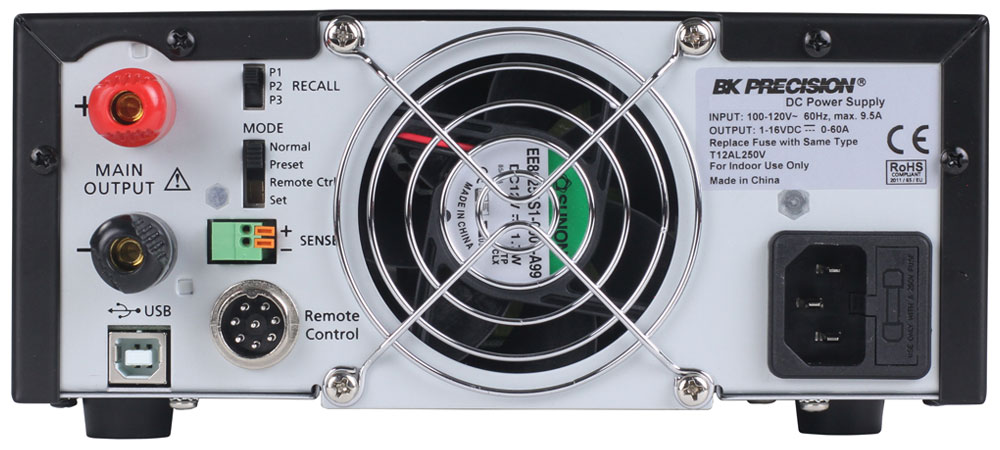

  • Remote sense (model 1900B only)

Ordering Information: Base models 1900B, 1901B, and 1902B operate with 110 V input only. For 220 V operation, request model 1900B-220V, 1901B-220V, or 1902B-220V at time of order.

Models

Product Max Voltage Max Current Max Power Number of Outputs Interface MSRP
1900B 16 V 60 A 960 W 1
USB
Analog
$765
1901B 32 V 30 A 960 W 1
USB
Analog
$765
1902B 60 V 15 A 900 W 1
USB
Analog
$765

Documents

Documentation


Software

Description

Version

Download

Accessories

TLPWR1

High current premium test lead accessory

TLPWR1

High quality red and black cable with externally braided wrap with large fork-type spade connectors for connecting to high current power supplies or DC loads.

  • Length: 2 m
  • Rated current: 60 A
  • Gauge: 8 AWG
  • Connector inner diameter: 8 mm (approximate)
  • Connector outer width: 15 mm (approximate)
  • Wire material: flexible silicon jacket

MSRP
$110
TL 5A

5A Hook-Up Cable Set

TL 5A



  • 4mm Banana plug to alligator clip
  • 5A rating
  • Black and Red pair
  • 40" (1.0m) length



MSRP
$11
TLPS

Power Supply Test Leads Set

TLPS

This accessory kit combines safety and functionality. A must have for anyone who uses power supplies or loads.

  • Medium and large insulated alligator clips
  • Black and red components
  • Sense lead included





Description Max current
Red and black test lead (120 cm) 25 A
Spade lug adapters (6 & 4 mm) 36 A
Standard alligator clips 3 A
4 mmBanana plug adapters 36 A
Large insulated alligator clips 36 A
Red and black sense leads (10 cm) 3 A

MSRP
$57
TLPWR31

100 cm Premium Spade Connector Test Lead Set

TLPWR31

High quality red and black cable dual diameter spade connectors for connecting to power supplies or DC loads.

  • Length: 1 meter
  • Rated current: 30 A
  • Connectors: 6/4 mm Spade lug
  • Wire material: flexible silicon jacket

MSRP
$45
TLPWR32

200 cm Premium Spade Connector Test Lead Set

TLPWR32

High quality red and black cable dual diameter spade connectors for connecting to power supplies or DC loads.

  • Length: 2 meter
  • Rated current: 30 A
  • Connectors: 6/4 mm Spade lug
  • Wire material: flexible silicon jacket

MSRP
$56
