9200B Series

Multi-Range Programmable DC Power Supplies

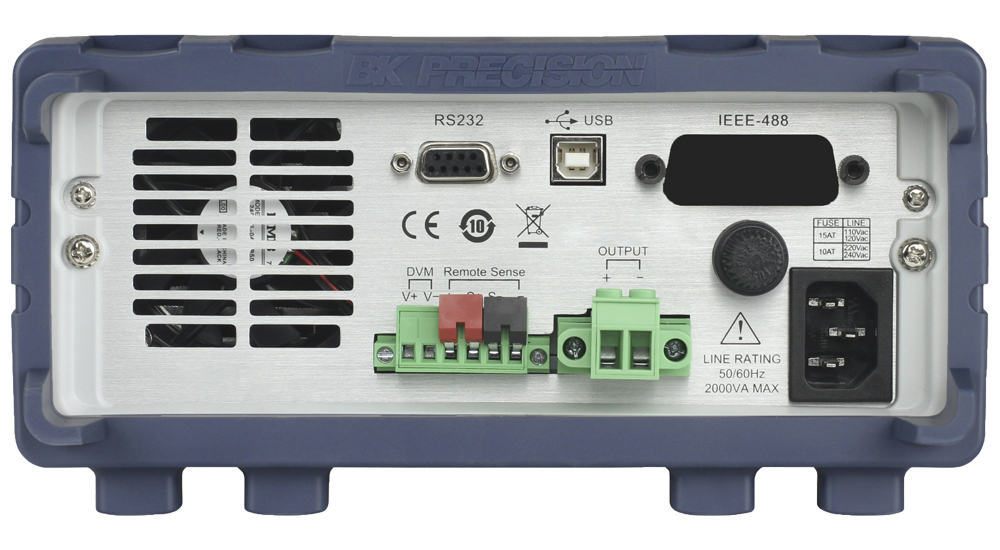

Model 9206B

MSRP $1,940 / 3 Yr Warranty

Where to Buy

Any 9200B series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

For benchtop applications, these power supplies provide a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands.

Multi-ranging operation
High programming and readback resolution of 1 mV/0.1 mA
Output timer function
List mode programming
Store and recall up to 72 instrument settings
Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
Remote sense
Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
NI-certified LabVIEW driver and softpanel for remote control, test sequence generation, and datalogging available
Compact 19" half-rack form factor allows for side-by-side rack mounting of two units

Model	Voltage	Current	Max Power	MSRP
9201B	0-60 V	0-10 A	200 W	$865
9202B	0-60 V	0-15 A	360 W	$1,105
9205B	0-60 V	0-25 A	600 W	$1,725
9206B	0-150 V	0-10 A	600 W	$1,940

Documentation

Software

Description	Version	Download
Operating Software w/ LabVIEW 2013 Run-Time Engine (Supports Windows(R) 7/8/8.1)	1.0.8	9200_software.zip
Operating Software (Supports Windows(R) 7/8/8.1)	1.0.8	9200_software_noLVRT.zip
Battery Test Software w/ LabVIEW 2020 Run-Time Engine	1.6.5	Battery_software.zip
Battery Test Software	1.6.5	Battery_software_noLVRT.zip
LabVIEW 2020 Drivers	1.0.3	LV9200.zip
USBTMC Driver Installation Note	1.0	USBTMC_Driver_Readme.txt

Rack mount kit for select models

Model IT-E151

The IT-E151 is for rack mounting of compatible products in either a side-by-side configuration or single unit configuration where a provided blank is used to fill the empty space. The dimensions for the kit are 5.24" (133mm) by 19" (482.6mm).

Compatible models:

- 1785B Series - 8512

- 9120A Series - 8514

- 9150 Series - 8518

- 9130B Series - 8600

- 8542B - 8601

- 8500/B - 8602

- 8502/B - 9801

- 8510/B - 9200 Series

IT-E151 Instruction Manual

MSRP $93.00

Power Supply Test Leads Set

Model TLPS

This accessory kit combines safety and functionality. A must have for anyone who uses power supplies or loads.

Medium and large insulated alligator clips
Black and red components
Sense lead included

Description	Max current
Red and black test lead (120 cm)	25 A
Spade lug adapters (6 & 4 mm)	36 A
Standard alligator clips	3 A
4 mmBanana plug adapters	36 A
Large insulated alligator clips	36 A
Red and black sense leads (10 cm)	3 A

MSRP $57.00

100 cm Premium Spade Connector Test Lead Set

Model TLPWR31
High quality red and black cable dual diameter spade connectors for connecting to power supplies or DC loads.

Length: 1 meter

Rated current: 30 A

Connectors: 6/4 mm Spade lug

Wire material: flexible silicon jacket
MSRP $45.00
200 cm Premium Spade Connector Test Lead Set

Model TLPWR32
High quality red and black cable dual diameter spade connectors for connecting to power supplies or DC loads.

Length: 2 meter

Rated current: 30 A

Connectors: 6/4 mm Spade lug

Wire material: flexible silicon jacket
MSRP $56.00
