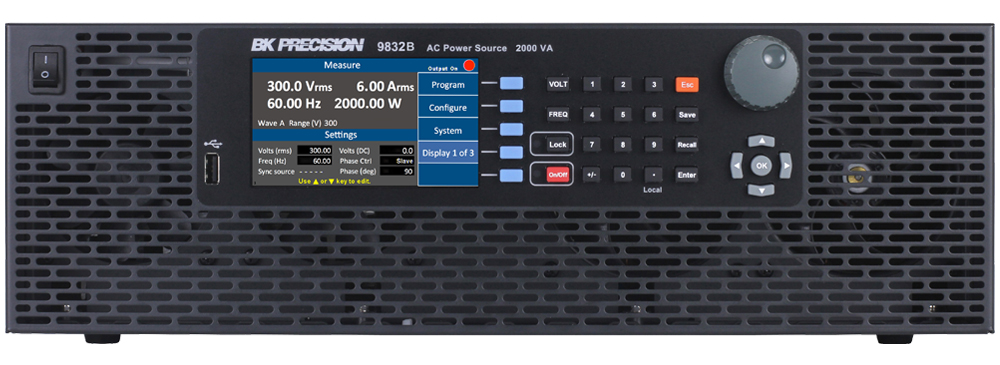

9830B Series

Programmable AC Power Sources

Model 9832B

MSRP $6,450 / 3 Yr Warranty

Where to Buy

The 9830B Series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs.

3-Phase power can be achieved by connecting 3 units of the same model in a master and slave configuration using the optional 3-Phase sync adapters. The frequency range is adjustable from 45 to 600 Hz in 3-phase mode.

Features & Benefits

AC, DC and AC+DC power source
3-Phase capability using multiple AC sources and 3-Phase kit (TL983P-KIT)
Low total harmonic distortion meets the IEC 61000-3-2 standard
Comprehensive measurement capabilities Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
0.98 power factor at AC input stage
Built-in standard waveforms sine, square and clipped sine
30 built-in THD waveforms
Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
Step, List and Pulse modes for generating power line disturbance (PLD) simulations
List mode supports 10 user-defined programs with up to 100 programmable steps
Generate custom harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations
Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
Comprehensive protection modes OVP, OCP,OPP, OTP, fan failure, output timer and key lock
Downloadable LabVIEW^TM driver and soft panel software for remote control
Standard USB (USBTMC-compliant), RS232, LAN, and GPIB remote interfaces

Applications

Pre-compliance testing
Simulate common grid faults, voltage sags, frequency, and phase disturbances, according to IEC61000-4-11/14/28/34
Electromagnetic compatibility (EMC), according to IEC61000-3-2
Evaluate transformers, TRIACs, SCRs, and passive components

Helpful tool for dealing with electrical power.

Model	Max Voltage	Max Current	Max Power	MSRP
9832B	0 - 300 V	0 - 20 A	2000 VA	$6,450
9833B	0 - 300 V	0 - 30 A	3000 VA	$7,750

Documentation

Software

Description	Version	Download
3-Phase Software (Supports Windows 10/7)	1.03	9830B_3phase_software.zip
Operating Software (Supports Windows 7/8/10)	V1.21.04	9830_Series_software.zip
USB Virtual COM Drivers (Supports Windows 7/8/8.1/10)	V6.7.5	CP210X_USB_Driver.zip
LabVIEW 2020 Drivers	1.0.4	LV983X.zip
USBTMC Driver Installation Note	1.0	USBTMC_Driver_Readme.txt

Replacement Unterminated AC Power Cord

Model PCAK2
Replacement unterminated power cord assembly with side directional "key" to prevent reverse connection orentation.

Used with:

9830B Series

XLN15010, XLN15010-GL

XLN30052, XLN30052-GL

XLN60026, XLN60026-GL

PVS Series

MR Series
MSRP $75.00
Rackmount Ears with Handles

Model RK3U

Rackmount side brackets and handles for the 9830 Series. The RK3U is not intended to be a load-bearing piece of hardware. To support the weight of the equipment, please contact your rack manufacturer for specific supporting hardware.

MSRP $67.00
3-Phase Sync Adapter

Model TL983P

Replacement adapter for the 3-phase kit (TL983P-KIT), provides synchronization and timing signal for 3-phase operation. Additional adapters can be used with standard pin to pin RJ45 cables to create split-phase or multi-phase systems (> 3-phase).

MSRP $125.00
3-Phase Sync Adapter Kit

Model TL983P-KIT

Provides required synchronization and timing signals for 3-phase operation. Includes three adapters (TL983P) and two standard pin to pin RJ45 cables. Compatible with 9832B or 9833B AC sources.

MSRP $360.00
